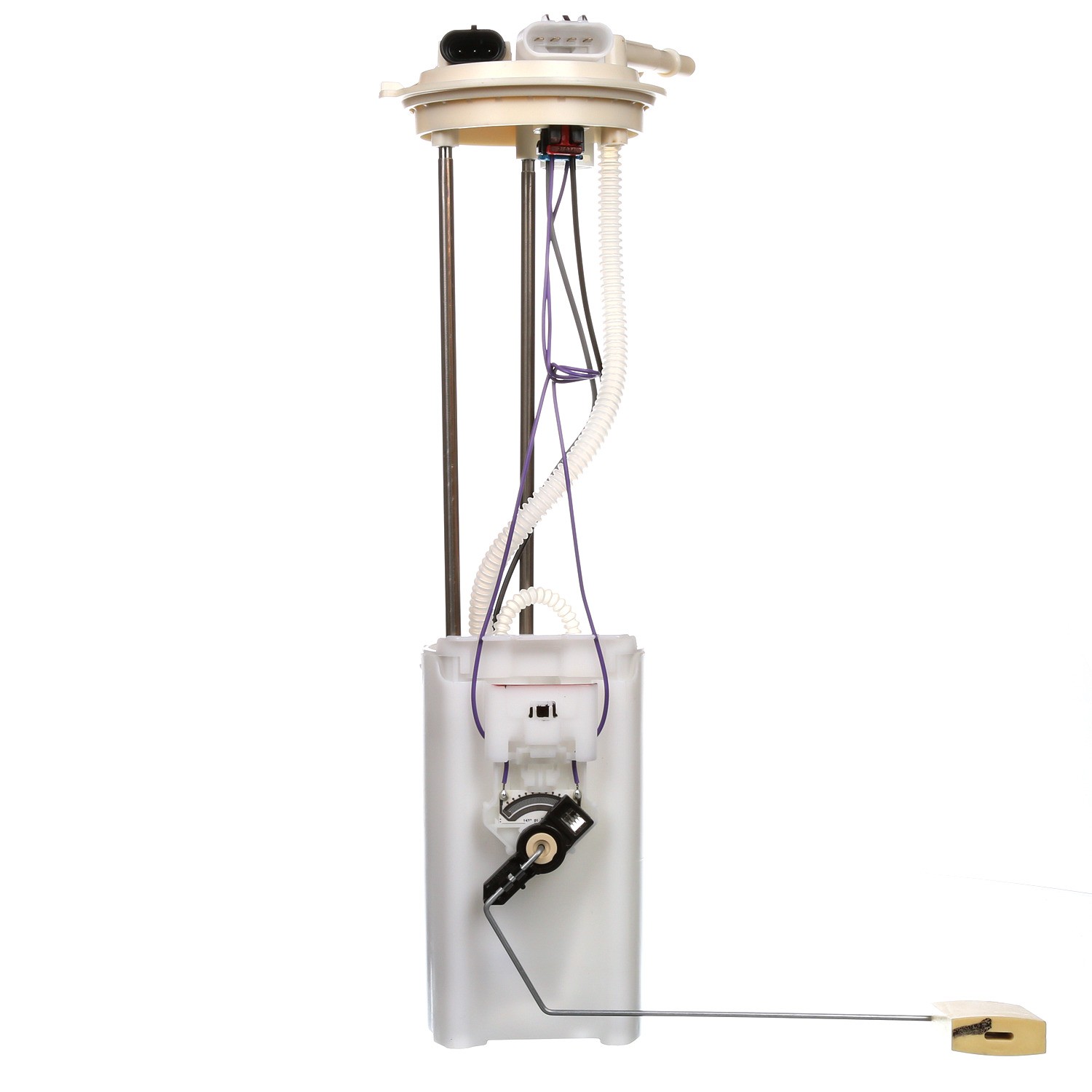

Delphi FG0086 Fuel Pump Module Assembly

Part Name: Delphi FG0086 Fuel Pump Module AssemblyBrand: DelphiPart#: FG0086
Fuel Pump Module Assembly DE FG0086
Fuel Pump Module Assembly DE FG0086Fuel Pump Module Assembly DE FG0086Fuel Pump Module Assembly DE FG0086Fuel Pump Module Assembly DE FG0086Fuel Pump Module Assembly DE FG0086

Delphi FG0086 Fuel Pump Module Assembly

DE

Description:

  • Fuel Pump Module Assembly

Part Specifications:

  • Pump Location : In Tank
  • OBDII Sensor Included : Yes
  • Package Contents : Fuel Pump Module Assembly w/Float Arm, Tank Seal, Splice Kit, Instruction Sheet
  • Outlet Size : 3/8 in
  • Inlet Type : Strainer
  • Terminal Type : 1 x 4 Connector
  • Pump Type : Turbine
  • Amp : 10
  • Outlet Type : Male Quick Connect
  • Shut Off Pressure : 65-131 psi
  • Resistance at Empty : 40
  • Outlet Quantity : 3
  • Item Grade : Standard Replacement
  • System Pressure : 62 psi
  • Type/Series : Fuel Delivery Module
  • Vapor Vent Line : Yes
  • Strainer Included : Yes
  • Relief Pressure : 109 psi
  • Connector Shape/Type : Oval/Male
  • Volts : 13 vDC
  • Vapor Pressure Sensor : Yes
  • Flow Rate : 32 gal/hr
  • Mount Type : In Tank
  • Strainer Location : Internal & External
  • Meets or Exceeds Original Equipment Manufacture Specifications : Yes
  • Resistance at Full : 250
  • Fuel Type : Gasoline
  • Gasket/Seal Included : Yes
  • Harness/Jumper : 1 X 4 Splice Harness
  • Installed Height : 347.5 mm
  • Fuel Level Sender Assembly Included : Yes
  • Fuel Pressure Regulator : No
  • Fuel Level Vent Valve Included : No
  • See more

Features:

  • Delphi brings 80 + years of OE Heritage into each Delphi pump, module, and strainer, ensuring quality and fitment for each Delphi part.
